Heavy Product Line

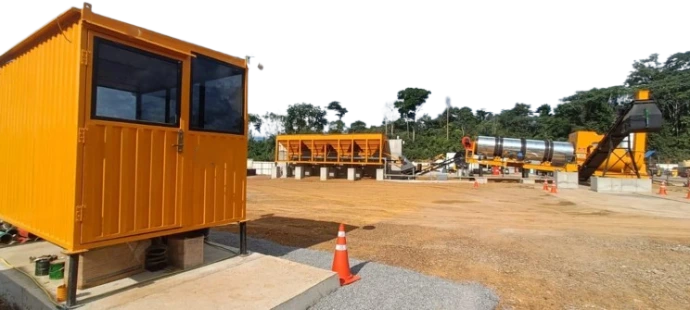

Asphalt Drum Mix Plant
Features:
- Fully Computerised & Automatic Plants upto 150 TPH Capacity
- Mobile and Stationary
- Wet Type and Bag House Filter Systems
Technical Specifications
| Model | Capacity |
| DM 20 | 15 to 20 TPH |
| DM 45 | 30 to 45 TPH |
| DM 60 | 45 to 60 TPH |
| DM 90 | 60 to 90 TPH |
| DM 120 | 90 to 120 TPH |
| DM 150 | 120 to 150 TPH |

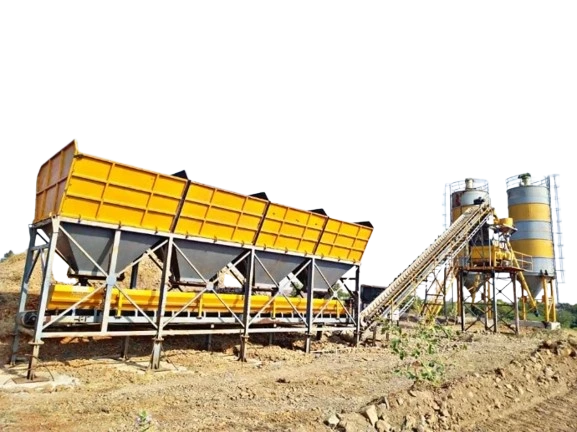

Concrete Batching Plant
Technical Specifications
| SCP-30 | SCP-45 | SCP-60 | |
| Output (m³/hr) | 30 | 45 | 60 |
| Type of Sand / Aggregate Bin | In Line | In Line | In Line |
| No. of Bins | 4 | 4 | 4 |
| Bin Capacity (Each) | 8 m³ | 10 m³ | 15 m³ |
| Transfer Belt Width | 500 mm | 550 mm | 650 mm |
| Type of Mixer | Pan | Twin Shaft | Twin Shaft |
| Cement / Filler Weighing System | Included | Included | Included |
Mobile Hot Mix Plant
Technical Specifications
Capacity - 8 to 10 Ton/Hr
Engine - Kirloskar 12 hp
Type - Mobile
Single Drum Asphalt Mixer (Combined Drying & Mixing Unit), Capacity – 7/10 TPH. The unit is totally self contained fitted with adequate rated air cooled diesel engine driven through chain transmission system. It consists of special type oil firing equipment. The unit is mounted on heavy duty fabricated M.S chassis fitted with four nos. pneumatic tyre wheels. A special type conventional storage bucket with liver arm has been provided for storage to facilitate continuous drying & mixing. It is designed for high mobility and conforming to IS specifications.

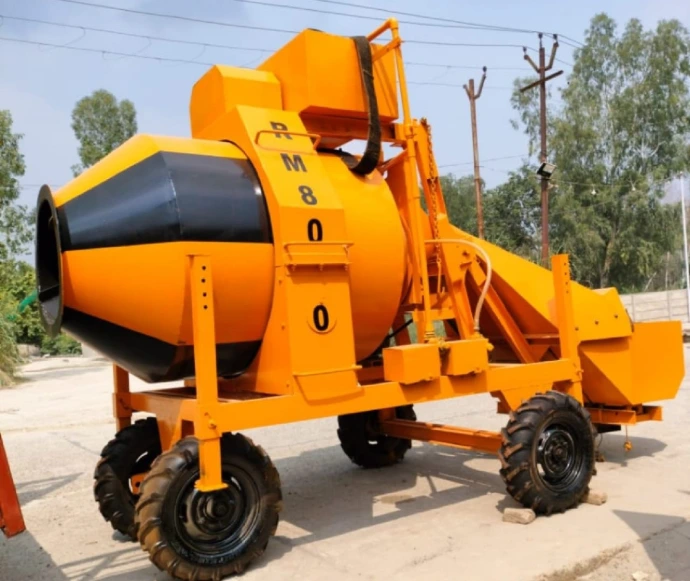

Reversable Drum Mixer
Technical Specifications
Model RM 800 - RM 1050
Capacity - 8-10 cbm/hr - 10-12 cbm/hr
Type - Mobile
Power Source - Diesel / Electric
Water tank - Inbuild
Batching Unit - Included
Toing System - Yes
Asphalt Paver Finisher
Technical Specifications
| Model | SPF – 45 | |
| Power Unit | 40-45 BHP | |
| Hopper capacity | 7000 Kg | |
| Conveyor | Twin bar type | |
| Dia. of screw spreader (Auger) | 254 mm | |
| Tamper-blows per min. | 1000 to 1500 | |
| Vibration | 3000 vpm (infinitely variable-hydraulic) | |
| Working speeds | 2 to 23 m/min | |
| Travel speed (max.) | 16 Km/hr | |
| No. of speeds | 8 forward and 8 reverse | |
| Mat thickness capacity | 10 to 205 mm | |
| Mat width capacity | 2.5 to 4 m | |
| Extension width (min.) | 75 mm | |
| Rear wheel & tyres | 10.00 – 20 x 12 PR | |
| Front solid tyres | 560 mm x 405 mm x 150 mm | |
| Permissible variation | ± 5% | |

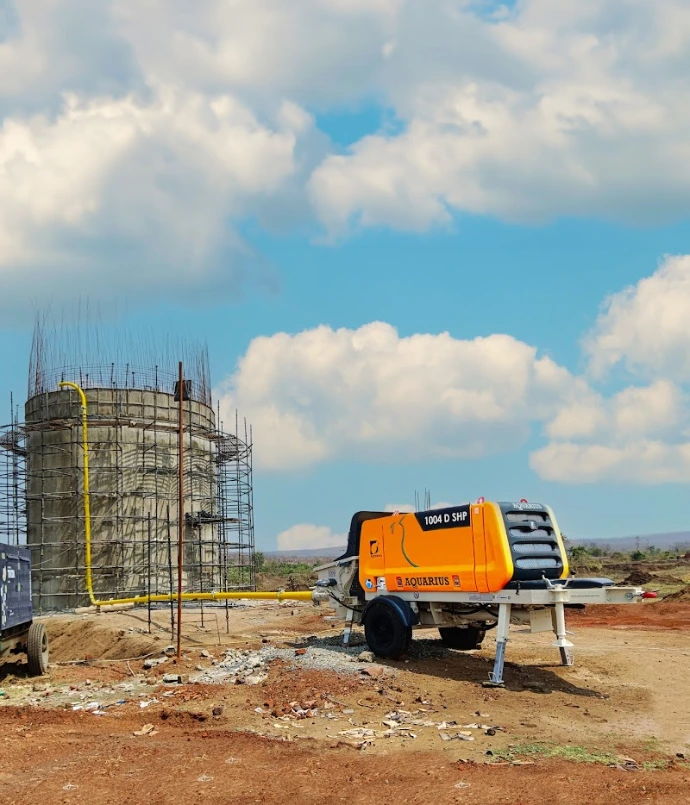

Concrete Pump
A concrete pump is a machine used to transfer liquid concrete by pushing it through hoses or pipes. The two main types are boom pumps and line pumps. It moves wet concrete quickly and safely to high floors or tight spaces.
How It Works
- Hopper: Fresh concrete is poured into a holding tank at the back of the machine.
- Pistons: Hydraulic cylinders push the wet mix forward in a steady stream.
- Valves: Special valves guide the concrete into steel pipes or rubber hoses without stopping.
Benefits
- Saves time and cuts down heavy physical work.
- Reaches high places or spots where trucks cannot drive.
- Keeps the concrete mixed well so the structure stays strong.
MODELS: HIGH PERFORMANCE CONCRETE PUMP
703 D, 704 D, 1405 D SUPER, 405 D PRIME, 1407 D
Features
- New Futuristic look with Latest Design
- Remote Control Operation
- Sturdy and rigid trailer frame with 4 nos. outriggers to achieve completely stable pumping
- Highly reliable equipment with longer maintenance intervals
- Uninterrupted operation possible with mechanical override on electrical system
- Lower number of strokes in its class resulting low wear part cost

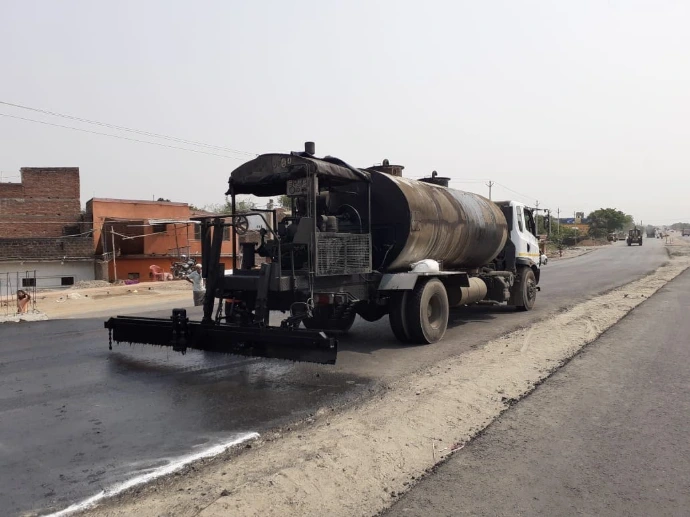

Bitumen Pressure Distributor
Technical Specifications
| Model | AYS 4000 | AYS 5000 | AYS 6000 | AYS 8000 |
|---|---|---|---|---|
| Capacity | 4000 Ltrs | 5000 Ltrs | 6000 Ltrs | 8000 Ltrs |
Features of Bitumen Pressure Distributor
- Fully – Insulated tank with high efficiency heating system.
- Air cooled diesel engine and positive displacement gear pump
- Designed to suit standard truck chassis.
- Safe and Easy in operation.
- Hand sprays system.

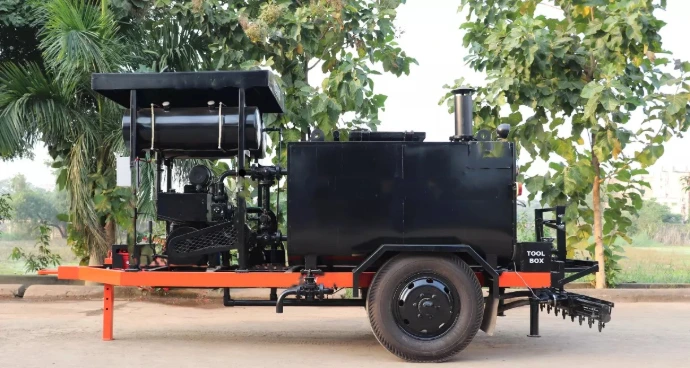

Trolley Mounted Bitumen Sprayer
Technical Specifications
| Model | AYS 2000 | AYS4000 | AYS 5000 |
|---|---|---|---|
| Capacity | 2000 Ltrs | 4000 Ltrs | 5000 Ltrs |
- An attachment on Truck, tractor & Jeep.
- Chassis and linkage holder are entirely made of steel.
- Both Heating System, Wood Fire Bhatthi & Burner System
- 3 to 4 Ton Capacity.
- Heavy Duty Chassis & Structure.
- Safe & easy Operation.
- Hand Spray System Available.

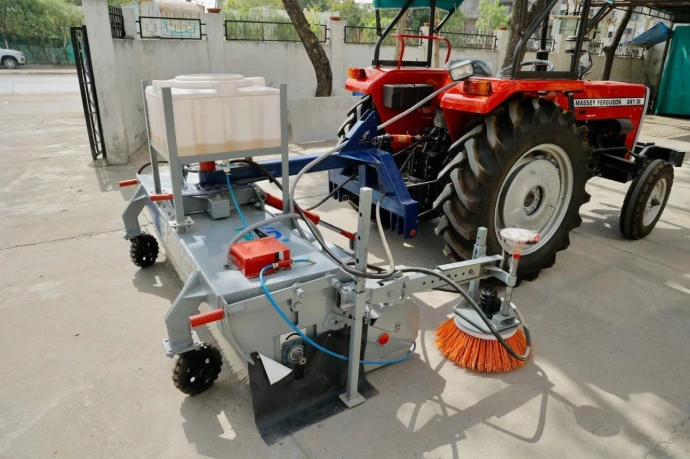

Road Broomer (Tractor Mounted)
Basic Configuration of Hydraulic Broomer
- Machine body stable and rigid structure
- Working width 2100mm
- Walking system prevents the heavy brush from stopping suddenly
- Easy click and release function can be attached/detached in minutes
- Adjustable Brush Height, Replaceable Brushes
- The brush rotates hydraulically in both directions.
Optional Features
- Water spray system for binding dust, including 100 litre tank and alternating pump.
- Hydraulic side brush for sweeping low walls (with or without water jet system)
Manual Road Marking Machine
- Road marking machine made by stainlesssteel.
- Manual hand push machine.
- Two laying shoes (Die) 10cm & 15cm withthickness
controller tips. - Paint tank capacity 100kg stainless steel tank.
- Glass beads containers capacity 15kg.
- Dimensions of application “W20* L36* H36”inch.
- Dispenser box :- 50-200mm Adjustable Dispenser box
- Heating system :- LPG commercial
- Front wheel size :- 10*2 Casting withRubber
- Real wheel size :- 6*2 Casting Wheelwith Rubber
- Weight of total system :- 165kg.
BOILER CAPACITY - 300 KG
Road Marking Boiler
A thermoplastic road marking boiler, also known as a hot-melt kettle or preheater, is a heavy-duty machine used to heat, melt, and continuously mix solid thermoplastic powder paint into a smooth liquid for highway lines
Technical Specifications
- Stainless steel of 3mm.
- MS Steel of 4mm thickness whichis enclose with Oil.
- MS Steel 2mm thickness enclose with Air.
- MS Steel of 2mm thicknessenclose with glass wool to maintain temperature.
- Engine type Bluestar diesel engine.
- Gear Box :- Eicher
- Dimensions :- 91*, 142*, 157*
- Tank capacity :- 300kg (12bag)
- Engine horse power :- 8HP
- Heating system :- LPG commercial
- Total weight system :- 450kg
- Operating system :- Manual
Mini Excavator
- Technical Specifications
| Specification | Value |
|---|---|
| Engine Model | YANMAR3 - TVN - 70 |
| Wheel Base | 1100mm |
| Track Length | 1300mm |
| Platform to ground interval | 380mm |
| Tail Turning Diameter | 933mm |
| Body Width | 1100mm |
| Track Width | 180mm |
| Track Height | 320mm |
| Transportation Length | 2550mm |
| Machine Height | 2200mm |
| Max. Earth Digging Diameter | 2400mm |
| Max. Earth Digging Depth | 1800mm |
| Max. Digging Height | 2740mm |
| Max. Uninstall Height | 1750mm |
| Max. VerticalDigging Depth | 1320mm |
| Min. Gyration Diameter | 1190mm |
| Max. Bulldozer Digging Height | 325mm |
| Max. Bulldozer Digging Depth | 175mm |
| Machine Weight | 1700kg |
| Capacity of Bucket | 0.03 m3 |
| Pilot System | Yes |
| Engine Power | 10kW/13.4hp |
