Model BS- 6000 / 8000

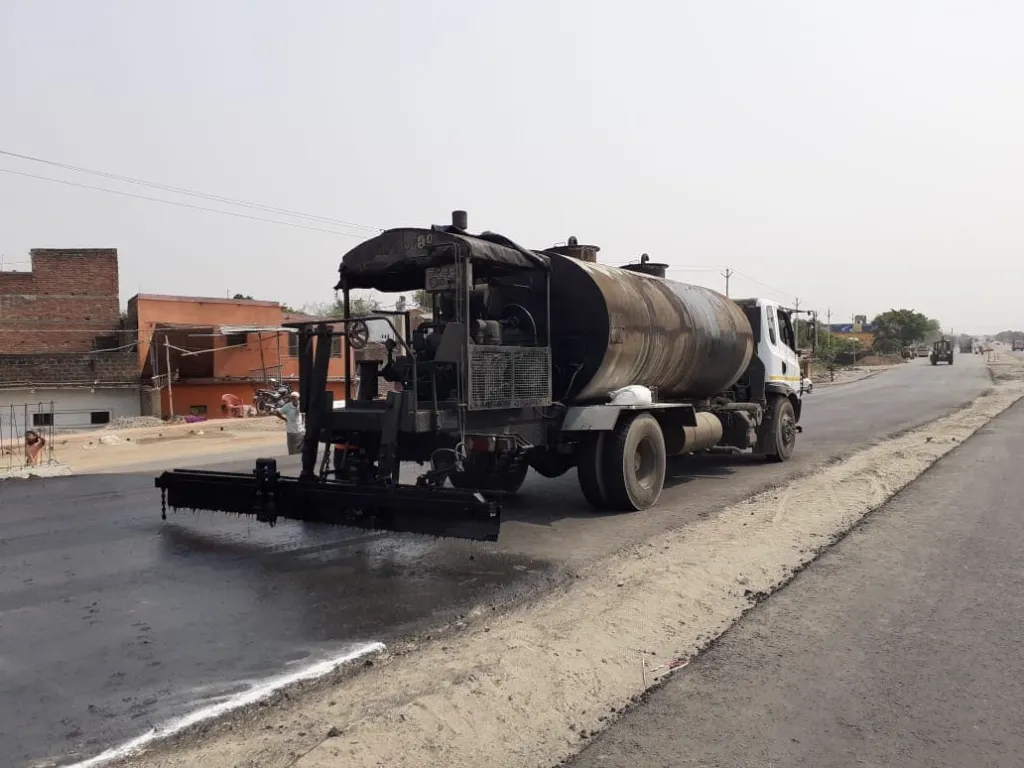

Truck mounted self propelled Bitumen Pressure Distributor with suitable heating system and variable spray bar to operate on constant pressure system, complete with air compressor, bitumen pump, auxiliary engine, tank mounting and other accessories for uniform and constant rate applications of hot bitumen (or cold tar) as per the specifications indicated below.
| Bitumen Tank |
| Capacity | 6000 / 8000 L |
| Thickness of shell | 4 mm |
| Shape | Rectangular / Oval shape with light resin bonded glass wool insulation of 50 mm thickness. |
| Manhole | 600 mm dia. |
| Filter | Removable screen filter |
| Filling of Tank | a) Through manhole. b) Through self-priming by own pump. |
| Temperature | Dial type thermometer of range 0° to 250° C. |
| Tank Contents Measurement | With calibrated dipstick. |
| Power Pack |
| Engine | 4 – Stroke twin cylinder air / water cooled diesel engine of 25 hp at 2000 RPM. |
| Bitumen Pump | Shuttle Block Type 380 to 450 litres per minute. |
| Compressor | Double cylinder 3 HP
Pressure 9 Kg/sq. cm
Maximum Capacity 360 LPM |
| Heating |
| Type of Burner | Single high pressure oil burner for adequate heating of viscous binder, oil consumption 8-20 lt/hr. |
| Tank Capacity | 50 L |
| Fire Tube | 230 mm dia. |
| Spray Bar |
| Type | Folding type fitted with pressure gauge, regulating valve etc |
| Width | Variable width from 2.4 to 4.2 metres by extension bar |
| Width adjustment | By closing of nozzles |
| Adjustment of height | Mechanical |
| Pre-heating of spray bar | By full circulation of preheated bitumen. |
| Distance of nozzles | 225 mm |
| Spraying pressure | To be adjusted between 0-6 bars |
| Hand lances | 2 Nos |
| Cleaning | By air pressure or diesel oil |
| Rate of application | 0.3 to 1.0 Kg / sqm
Calibration chart will be provided inside the driver’s cabin and at the operator’s platform. |
