CONCRETE PUMP
Technical Specification
| Parameters | Unit | 703 D | |
| Diesel | |||
| Prime Mover | kW | 34.6 | |
| Theoretical Output | m3/hr | 30 | |
| Del. Cylinder Diameter | mm | 200 | |
| Del. Cylinder Stroke | mm | 700 | |
| No. of Strokes | per min | 22.5 | |
| Hydraulic Transmission | 1:3.3 | ||
| Concrete Pressure | bar | 65 | |
| Concrete Hopper Capacity | L | 500 | |
| Delivery Distance** | Horiz Vert | m m | 320 80 |

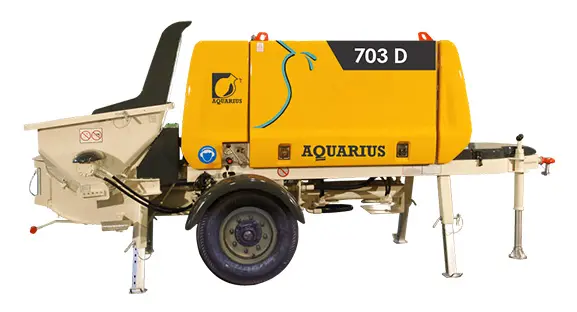

| CONCRETE PUMP: 703 D |
